Audi A4 & A5 Quattro Clutch Replacement: LuK 02-060 Kit Guide

Shopping for a replacement clutch for your Audi A4 Quattro or A5 Quattro? Matching the vehicle’s model year is only part of the process. The engine, manual transmission and installed flywheel also determine which clutch kit you need.

The LuK 02-060 clutch kit, also referenced as 6243587000, is an option for select Audi A4 Quattro and A5 Quattro manual-transmission applications. The SayParts package includes the pressure plate, clutch disc, release bearing and guide tube, with free shipping.

Here is what to check before ordering.

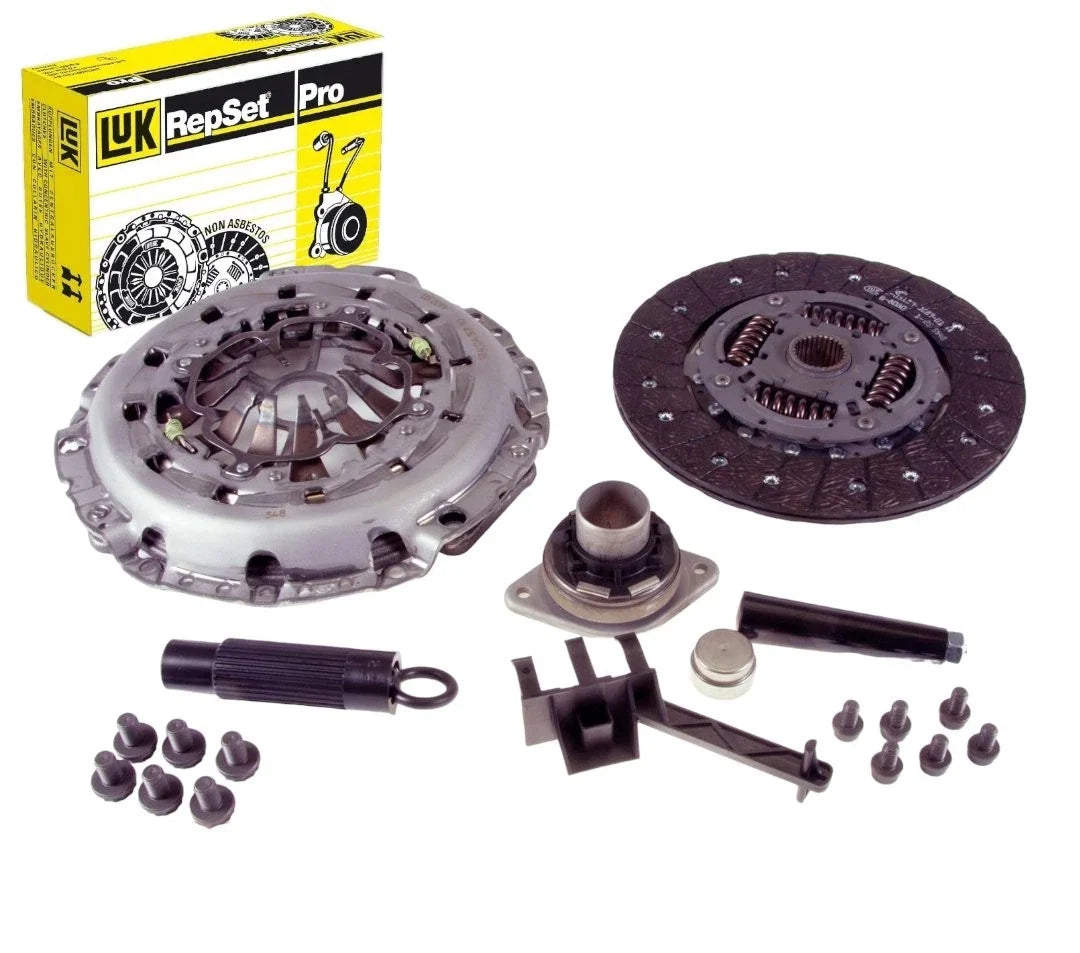

What Comes in the SayParts LuK 02-060 Package?

Our package includes:

Clutch pressure plate
Clutch friction disc
Clutch release bearing, also called a throwout bearing
Release-bearing guide tube

A flywheel and hydraulic slave cylinder are not included.

Knowing the package contents before your repair helps your installer identify any additional parts required for the job.

Which Audi Models Does LuK 02-060 Fit?

The following table summarizes the listed applications. Compatibility still depends on the vehicle’s transmission and flywheel configuration.

Vehicle	Model Years	Engine	Transmission
Audi A4 Quattro	2009–2016	2.0L Turbo I4	Manual
Audi A5 Quattro	2010–2017	2.0L Turbo I4	Manual
Audi A5 Quattro	2008–2009	3.2L V6	Manual

Important: This is a manual-transmission clutch kit. It is not intended for automatic, Tiptronic, CVT or S tronic/DSG applications.

Confirm your VIN, transmission code and installed flywheel before purchasing. This is especially important if a previous owner has changed the clutch, flywheel or transmission.

Why Does the Flywheel Brand Matter?

The LuK 02-060 kit is specified for use with a LuK-brand flywheel.

A clutch and flywheel must be compatible as an assembly. A flywheel from another manufacturer should not be assumed to work simply because it fits the same Audi model.

If your vehicle needs a new flywheel, select it for the exact engine, model year and transmission. There is no single flywheel part number that should automatically be applied to every vehicle in the table above.

The flywheel is sold separately from this clutch kit.

What Are the Release Bearing and Guide Tube?

The release bearing is part of the mechanism that operates the clutch when you press the pedal. The guide tube provides the surface along which the release bearing travels.

The SayParts package includes both components alongside the pressure plate and friction disc. During installation, your technician should inspect the remaining release-system parts and hydraulic components to determine whether anything else needs replacement.

Useful Part Numbers and Specifications

Detail	Reference
Brand	LuK
Part Number	02-060
Alternative Number Format	02060
Additional LuK Reference	6243587000
Clutch Disc Diameter	Approximately 240 mm
Clutch Disc Spline Count	28
Flywheel Requirement	Compatible LuK-brand flywheel

Use these references when discussing the repair with your installer. Dimensions help identify a component, but they do not replace a vehicle-specific fitment check.

What Should Be Checked During Installation?

Clutch replacement is an opportunity to inspect the surrounding components while the transmission is removed.

Ask your installer to check the flywheel’s condition, release mechanism, hydraulic operation and any nearby oil leaks. A replacement clutch should be installed using the appropriate tools and the vehicle manufacturer’s service procedures.

If the flywheel requires replacement, confirm the correct part number before assembling the new clutch.

Why Buy from SayParts?

At SayParts, we provide the information you need to plan your purchase:

Clear package contents: Pressure plate, clutch disc, release bearing and guide tube.
Recognizable part references: LuK 02-060 and 6243587000.
Fitment requirements upfront: Check the engine, manual transmission and LuK flywheel requirement before ordering.
Free shipping: Shipping is included with your purchase.
