BMW M52 & M54 5W-40 Oil Change Guide – E46, E39, X3, X5, Z3 & Z4
BMW's M52 and M54 inline-six engines powered some of the brand's most popular models, including the E46 3 Series, E39 5 Series, E53 X5, E83 X3, Z3 and early E85 Z4.
These engines have earned a strong following for their smooth power delivery and straightforward naturally aspirated design. Like any BMW engine, however, proper lubrication and regular oil-filter replacement are essential parts of long-term maintenance.

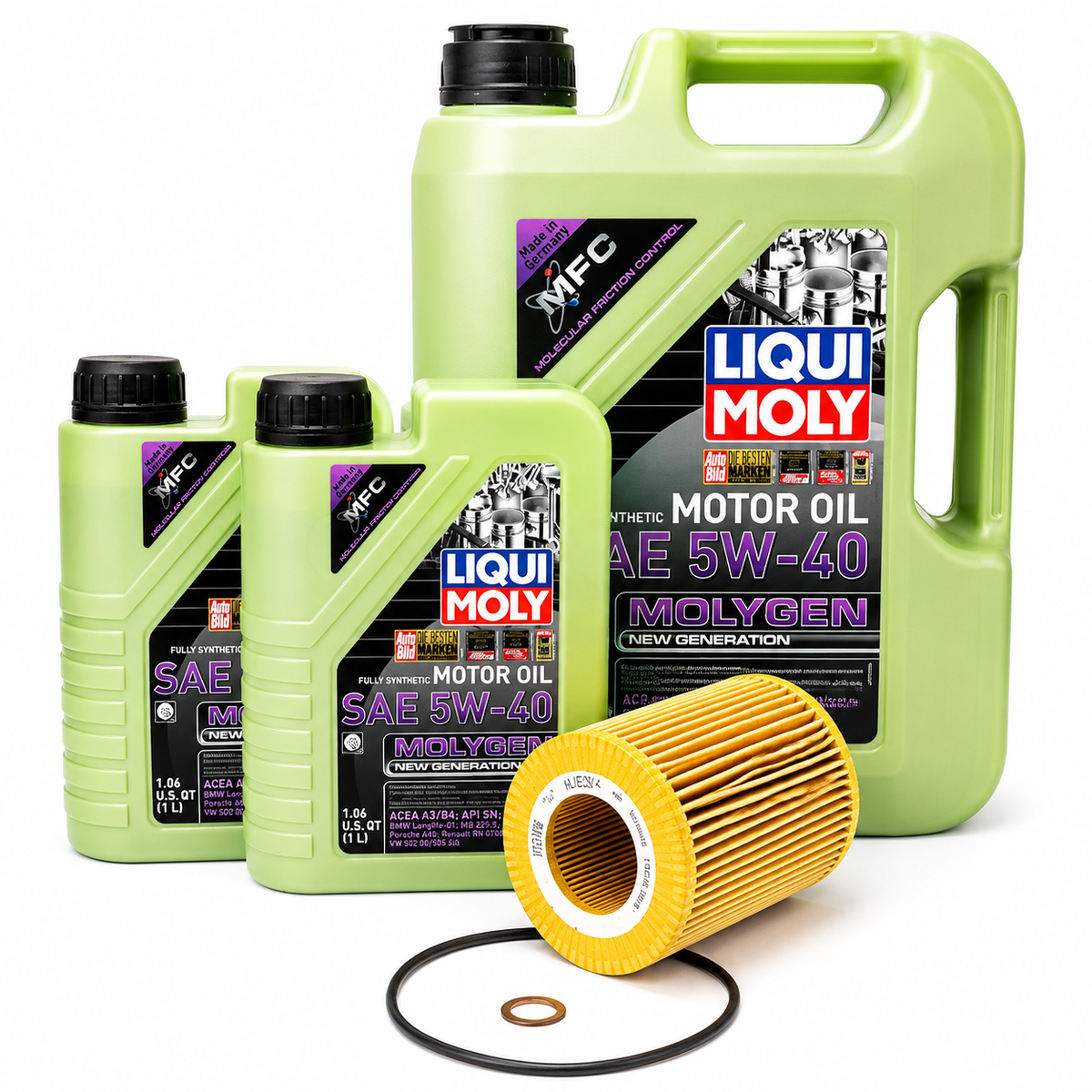

For compatible applications, Liqui Moly Molygen New Generation SAE 5W-40 provides a fully synthetic oil option with a viscosity and specification profile suited to many BMW Longlife-01 applications through model year 2018. Liqui Moly lists ACEA A3/B4, API SN and BMW Longlife-01 (up to 2018) among its recommendations for this oil.
Why Oil Maintenance Matters on BMW M52 & M54 Engines
The engine oil in an M52 or M54 does much more than simply lubricate the crankshaft.
It circulates throughout the engine to help protect:
- Crankshaft and connecting rod bearings
- Camshafts
- Valvetrain components
- VANOS components
- Timing chains and guides
- Pistons and cylinder walls
- Other internal friction surfaces
Over time, heat cycles, combustion byproducts and contamination gradually reduce the condition of the lubricant.
Replacing both the engine oil and filter provides the lubrication system with fresh oil and clean filtration media for the next service interval.
Why Liqui Moly Molygen 5W-40?
Liqui Moly Molygen New Generation SAE 5W-40 is a fully synthetic engine oil featuring Liqui Moly's MFC – Molecular Friction Control technology.
According to Liqui Moly, MFC technology is designed to reduce frictional losses while helping prevent deposits and protect against wear. The company also highlights high shear stability, rapid lubrication after cold starts, aging stability and engine cleanliness.
These characteristics make Molygen 5W-40 an attractive choice for compatible older BMW gasoline engines where the required specification matches the oil.
Liqui Moly Molygen 5W-40 Specifications
| Specification | Rating / Recommendation |
|---|---|
| SAE Viscosity | 5W-40 |
| Oil Type | Fully Synthetic |
| ACEA | A3/B4 |
| API | SN |
| BMW | Longlife-01 – up to 2018 |
| Mercedes-Benz | MB 229.5 |
| Porsche | A40 |
| Renault | RN 0700 / RN 0710 |
| Volkswagen | VW 502 00 / 505 00 |
Liqui Moly publishes these recommendations for Molygen New Generation 5W-40 and describes the product as suitable for demanding operation while providing strong wear protection and engine cleanliness.
Understanding 5W-40
The 5W-40 designation describes the oil's viscosity characteristics across different temperatures.
5W
The first portion describes low-temperature viscosity behavior.
Oil must circulate quickly during startup because many engine components need lubrication immediately after the engine begins running.
40
The second number represents the viscosity grade at normal operating temperature.
The objective is to combine effective cold-start circulation with an appropriate lubricating film once the engine reaches operating temperature.
What Makes Molygen Different?
Molygen New Generation is recognizable by its distinctive green color, but its formulation is more important than its appearance.
Liqui Moly uses its Molecular Friction Control additive technology to reduce friction and wear.
The manufacturer highlights:
- Excellent wear protection
- Reduced friction
- Deposit prevention
- High shear stability
- Fast lubrication after cold starts
- Engine cleanliness
- Aging stability
Liqui Moly also states that Molygen 5W-40 can be mixed with commercially available motor oils, although its full effectiveness is achieved when used unmixed.
BMW M54 Oil Change
The M54 is one of BMW's most recognizable naturally aspirated inline-six engines.
Depending on displacement and vehicle, M54 applications include versions of the:
BMW 325i / 325Ci / 325xi
BMW 330i / 330Ci / 330xi
BMW 525i
BMW 530i
BMW X3 2.5i / 3.0i
BMW X5 3.0i
BMW Z3 2.5i / 3.0i
BMW Z4 2.5i / 3.0i
When servicing these vehicles, it is still important to verify the exact model year and engine rather than selecting maintenance parts by chassis alone.
BMW E46 325i Oil Change
The E46 325i is one of the most common M54 applications.
Related M54-powered E46 variants include:
- 325i
- 325Ci
- 325xi
- 325xi Touring
These vehicles use the M54 2.5-liter inline-six in applicable production years.
A proper oil service should include both fresh engine oil and a replacement cartridge filter.
BMW E46 330i Oil Change
The E46 330i uses the larger 3.0-liter version of the M54.
Compatible body and drivetrain configurations include versions of the:
330i
330Ci
330xi
The 330i is an important distinction when shopping for E46 maintenance parts because not every E46 uses the same engine.
For example:
E46 330i → M54
while:
E46 M3 → S54
The S54-powered M3 has different maintenance requirements and should not be included simply because both vehicles use the E46 chassis.
BMW E39 525i & 530i Oil Change
BMW also used the M54 extensively in later versions of the E39 5 Series.
Important applications include:
E39 525i
M54 2.5L inline-six
E39 530i
M54 3.0L inline-six
These engines share many fundamental service characteristics with M54-powered E46 models.
However, always verify the exact vehicle before ordering an oil-change kit.
BMW X3 E83 Oil Change
Early E83 X3 models were offered with M54 inline-six engines.
Common applications include:
X3 2.5i
and
X3 3.0i
Later X3 models received different BMW engine families, so the X3 model name alone is not sufficient to determine oil-filter compatibility.
Engine identification remains important.
BMW X5 E53 3.0i Oil Change
The E53 X5 3.0i brought BMW's M54 inline-six to the company's first-generation X5.
Although the X5 is substantially larger than an E46 or Z4, the M54 engine architecture means many engine-maintenance components are shared across compatible applications.
Again, parts should be selected according to the engine and exact vehicle rather than simply the model family.
BMW Z3 Oil Change
Later versions of the BMW Z3 also used M54 engines.
Compatible M54 applications include versions of the:
Z3 2.5i
and
Z3 3.0i
The Z3 was produced with several different engines throughout its production run, so do not assume that every Z3 uses identical oil-service components.
BMW Z4 E85 Oil Change
Early versions of the E85 Z4 continued using BMW's M54 engine.
Important applications include:
Z4 2.5i
and
Z4 3.0i
Later E85 models transitioned to newer engine families.
This makes production year and engine identification particularly important when ordering a Z4 oil-change kit.
M52 vs M54
The M52 and M54 are related BMW inline-six engine families, but they are not identical.
BMW M52
Found in earlier BMW applications including versions of the:
- E36 3 Series
- E46 3 Series
- E39 5 Series
- Z3
BMW M54
Found in later applications including versions of the:
- E46 3 Series
- E39 5 Series
- E60/E61 5 Series
- E53 X5
- E83 X3
- Z3
- E85 Z4
For this reason, shopping by engine + model + year is more reliable than shopping by model name alone.
Why Replace the Oil Filter With Every Oil Change?
The oil filter captures contaminants carried through the lubrication system.
As mileage accumulates, those contaminants collect within the filter media.
Installing fresh oil while retaining an old filter means the new lubricant immediately circulates through filtration media that has already accumulated contamination.
A complete oil service should therefore normally include:
Fresh engine oil + new oil filter + new applicable seals
BMW Oil Filter 11427512300
One important BMW oil-filter reference associated with compatible M52/M54 applications is:
11427512300
The filter is a cartridge-style design installed inside the engine's oil-filter housing.
When replacing the cartridge, the large oil-filter housing O-ring should also be replaced.
The applicable sealing washer should likewise be renewed during the oil service rather than automatically reusing the old sealing component.
Why the Filter Housing O-Ring Matters
The large O-ring supplied with a cartridge filter is not an optional extra.
It seals the filter housing cap against the housing.
Over time, an O-ring is exposed to:
- Engine heat
- Oil
- Compression
- Repeated heat cycles
- Aging
Reusing an old seal can increase the risk of leakage.
When installing the replacement O-ring, make sure it sits in the correct groove rather than being positioned incorrectly on the filter cap.
How Much Oil Do BMW M52 & M54 Engines Need?
Oil capacity varies depending on the exact engine and vehicle.
If your oil-change package contains 7 liters, that describes the amount supplied in the package.
It does not necessarily mean that the engine should receive all 7 liters.
This distinction is important:
Kit Quantity ≠ Exact Refill Capacity
Always verify the specified oil capacity for the exact BMW model and engine before filling.
Then verify the final oil level according to the appropriate BMW procedure.
Don't Automatically Pour All 7 Liters Into the Engine
More oil does not mean more protection.
Overfilling an engine can cause problems of its own.
A safer service approach is to:
- Verify the manufacturer's specified capacity.
- Add the appropriate initial amount.
- Start the engine according to the proper procedure.
- Allow the oil to circulate.
- Check for leaks.
- Verify the final oil level.
- Add additional oil only when necessary.
Keep any unused oil for future top-offs if appropriate.
Basic BMW M52/M54 Oil Change Procedure
A typical oil service generally involves:
- Bring the engine to the appropriate service condition.
- Safely raise and support the vehicle if necessary.
- Remove applicable underbody protection.
- Drain the used engine oil.
- Replace the drain-plug sealing washer.
- Remove the oil-filter housing cap.
- Remove the old cartridge filter.
- Remove the old filter-housing O-ring.
- Install the new oil filter.
- Install the new O-ring in its correct position.
- Lightly lubricate the O-ring with clean engine oil where specified.
- Reinstall the filter housing cap using the correct torque specification.
- Reinstall the drain plug using the appropriate torque specification.
- Add the specified amount of engine oil.
- Start the engine and allow oil to circulate.
- Inspect the filter housing and drain area for leaks.
- Verify the engine oil level.
- Correct the level if necessary.
Always follow the appropriate BMW service information and torque specifications for your exact vehicle.
Check for Common M52/M54 Oil Leaks
Oil-change time is also a useful opportunity to inspect the engine for existing leaks.
Look around:
- Oil filter housing area
- Valve cover area
- Oil pan
- Drain plug
- VANOS area
- Front of the engine
- Underside of the vehicle
An oil change does not repair an existing gasket or seal failure.
If oil is visible around the engine, identify the source rather than assuming that replacing the oil and filter will correct the leak.
Inspect the Old Oil Filter
Before throwing away the old cartridge, inspect it.
Look for:
- Metallic particles
- Abnormal debris
- Sludge
- Damaged or collapsed filter media
- Unusual contamination
A visual inspection cannot provide a complete diagnosis of engine condition, but abnormal contamination can indicate that further investigation is worthwhile.
M54 vs S54 – Don't Order the Wrong Kit
This distinction is particularly important for E46 owners.
M54
Used in models such as:
325i
325Ci
325xi
330i
330Ci
330xi
S54
Used in the:
E46 M3
The S54 is a BMW M high-performance engine with different lubrication requirements and service components.
Therefore:
E46 330i ≠ E46 M3
Do not order an oil-change kit based only on the E46 chassis designation.
M54 vs N52 – Important for Z4 Owners
Z4 owners need to make a similar distinction.
Early E85 Z4 models were available with the M54, while later versions transitioned to BMW's N52 engine family.
Therefore:
E85 Z4 does not automatically mean M54.
Verify the exact model year and engine before selecting the oil filter or service kit.
Common BMW M52/M54 Oil Change Mistakes
Avoid these common mistakes:
- Ordering parts by chassis alone
- Assuming every E46 uses the same oil filter
- Confusing M54 and S54 applications
- Confusing M54 and N52 Z4 applications
- Reusing an old oil filter
- Reusing the old filter housing O-ring
- Installing the O-ring in the wrong groove
- Reusing a damaged drain-plug washer
- Assuming package quantity equals engine capacity
- Pouring all supplied oil into the engine automatically
- Overfilling the engine
- Guessing torque specifications
- Ignoring existing engine oil leaks
- Failing to check the final oil level
BMW M52 & M54 5W-40 FAQ
What oil is covered in this guide?
Liqui Moly Molygen New Generation SAE 5W-40.Is Liqui Moly Molygen 5W-40 fully synthetic?
Yes. Liqui Moly describes its U.S.-market Molygen New Generation SAE 5W-40 as a fully synthetic specialty motor oil.Does Molygen 5W-40 meet BMW Longlife-01 requirements?
Liqui Moly recommends it for applications requiring BMW Longlife-01 up to 2018.What other specifications does the oil reference?
Liqui Moly lists ACEA A3/B4, API SN, MB 229.5, Porsche A40, Renault RN 0700/RN 0710 and VW 502 00/505 00, among others.Is it suitable for turbocharged engines?
Liqui Moly describes Molygen 5W-40 as suitable for modern gasoline and diesel engines with and without turbochargers.What BMW oil-filter reference is associated with this service package?
11427512300.Does this fit an E46 M3?
No. The E46 M3 uses the S54 engine and should not be treated as a standard M52/M54 E46 application.Does every E85 Z4 use this setup?
No. Engine generation must be checked because later E85 models can use engines other than the M54.Should I pour the entire 7-liter kit into the engine?
Not automatically. Verify the exact refill capacity for your vehicle and check the final oil level.
Keep Your BMW Inline-Six Properly Maintained
BMW's M52 and M54 engines powered a remarkably broad range of vehicles, from the E46 3 Series and E39 5 Series to the X3, X5, Z3 and Z4.
For compatible applications, Liqui Moly Molygen New Generation 5W-40 provides a fully synthetic formulation designed around friction reduction, wear protection, engine cleanliness and stable lubrication. Liqui Moly recommends the product for BMW Longlife-01 applications up to 2018.
Pairing fresh engine oil with the correct replacement oil filter and new sealing components provides the foundation for a proper routine oil service.
Always verify the exact year, model, engine and required oil specification before ordering or performing maintenance.
