BMW N20 & N26 5W-40 Oil Change Guide – 228i, 320i, 328i, 428i, 528i, X1 & Z4
BMW's N20 and N26 turbocharged four-cylinder engines brought a combination of strong low-end torque, direct injection, variable valve timing, and turbocharging to a wide range of BMW models.
These engines can be found in compatible versions of the BMW 228i, 320i, 328i, 428i, 528i, X1 and Z4, among others.
Because turbocharged engines place significant demands on their lubrication systems, choosing the correct engine oil and replacing the oil filter regularly are important parts of maintaining an N20 or N26-powered BMW.

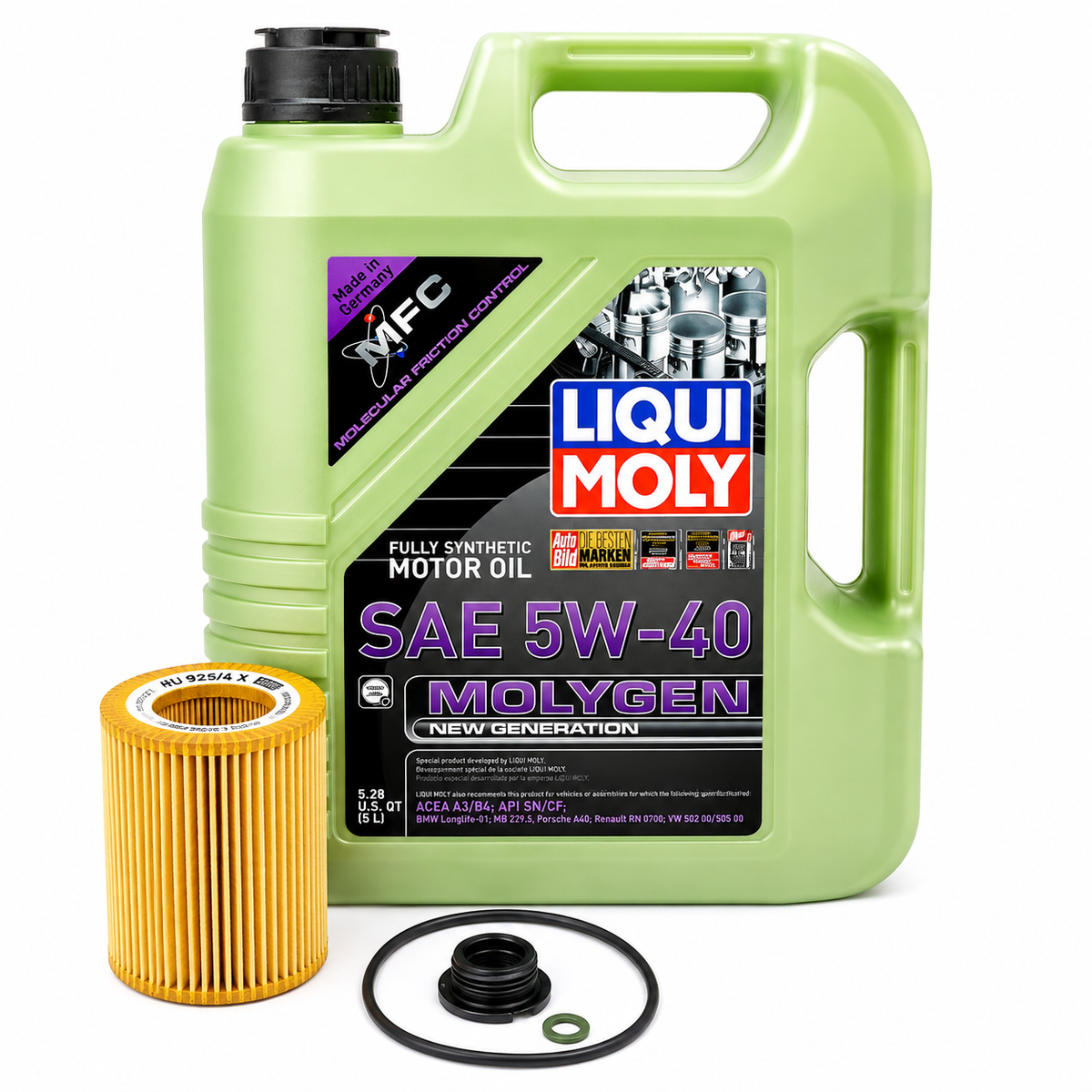

For compatible applications, Liqui Moly Molygen New Generation SAE 5W-40 provides a fully synthetic option designed to deliver strong wear protection, lubrication stability, and deposit control.
Why Oil Maintenance Matters on BMW N20 & N26 Engines
The N20 and N26 use a turbocharged 2.0-liter four-cylinder architecture. Engine oil must protect numerous high-load and high-temperature components while circulating throughout the engine.
Oil helps lubricate and protect:
- Turbocharger bearings
- Crankshaft bearings
- Connecting rod bearings
- Pistons and cylinder walls
- Camshafts and valvetrain
- VANOS components
- Timing chain components
- Other internal friction surfaces
As engine oil accumulates mileage and heat cycles, contaminants build up and the lubricant gradually ages.
Routine oil and filter changes help maintain clean oil circulation throughout the engine.
Why Liqui Moly Molygen 5W-40?
Liqui Moly Molygen New Generation SAE 5W-40 is a fully synthetic motor oil formulated for demanding gasoline and diesel engines, including turbocharged applications.
One of its defining features is Liqui Moly's MFC – Molecular Friction Control technology.
Molygen 5W-40 is designed to provide:
- Excellent wear protection
- Reduced friction
- High shear stability
- Fast lubrication after cold starts
- Strong lubrication at operating temperature
- Deposit control
- Engine cleanliness
- Aging stability
These characteristics can make it a strong choice for compatible BMW turbocharged engines when the oil's specifications match the vehicle's requirements.
Understanding SAE 5W-40
The 5W-40 designation describes the oil's viscosity characteristics at different temperatures.
What Does 5W Mean?
The 5W portion describes low-temperature viscosity performance.
Engine wear can be significant during startup because the lubricant needs to circulate throughout the engine quickly.
An oil with appropriate cold-temperature properties helps deliver lubrication to critical components shortly after startup.
What Does 40 Mean?
The 40 represents the oil's viscosity grade at normal operating temperature.
Once the engine and turbocharger are hot, the lubricant must continue maintaining an appropriate protective oil film.
This balance between cold-start flow and operating-temperature protection is one reason 5W-40 oils are popular in many European performance and turbocharged applications.
What Is BMW's N20 Engine?
The BMW N20 is a turbocharged 2.0-liter inline-four gasoline engine.
It was introduced as part of BMW's transition toward smaller turbocharged engines and was used across several vehicle platforms.
Depending on year and market, N20-powered vehicles include compatible versions of the:
BMW 228i
BMW 320i
BMW 328i
BMW 428i
BMW 528i
BMW X1 sDrive28i
BMW Z4 sDrive28i
Because BMW used multiple engines under the same model badges across different production years, exact engine identification is important before ordering maintenance parts.
What Is the BMW N26?
The N26 is closely related to the N20.
BMW developed the N26 for specific emissions-compliant applications, particularly vehicles meeting SULEV requirements in certain markets.
N20 and N26 engines share many fundamental components and service items, which is why oil filters and maintenance packages can overlap between the two engine families.
However:
N20 and N26 should not automatically be treated as identical in every situation.
Always verify the exact engine and vehicle configuration before ordering.
BMW 228i Oil Change
Compatible versions of the F22/F23 BMW 228i use BMW's turbocharged four-cylinder engine.
For these vehicles, a complete oil service should include:
- Correct engine oil
- New cartridge oil filter
- New applicable O-rings
- Correct oil quantity
- Final oil-level verification
Because later 2 Series models transitioned to different BMW engine families, the 228i badge alone should not be used to determine fitment.
BMW 320i Oil Change
The F30 BMW 320i is another important N20/N26 application.
The 320i uses a turbocharged four-cylinder engine and requires the correct oil specification and filtration components for its exact model year and engine.
When shopping for an oil-change package, verify:
Model Year + Engine + VIN
rather than simply ordering a kit labeled "BMW 3 Series."
BMW 328i Oil Change
The F30 328i is one of the most recognizable N20/N26-powered BMW models.
Compatible variants can include:
- 328i Sedan
- 328i xDrive
- 328i Touring
- 328i xDrive Touring
- 328i Gran Turismo
- 328i xDrive Gran Turismo
depending on year, market, and engine configuration.
This is also a good example of why chassis designation alone is not enough.
An older E90 328i and an F30 328i may carry the same 328i badge but use completely different engine families.
BMW 428i Oil Change
BMW's 428i brought N20/N26 turbocharged four-cylinder power to the 4 Series.
Compatible configurations can include versions of the:
428i Coupe
428i Convertible
428i Gran Coupe
428i xDrive Coupe
428i xDrive Gran Coupe
Again, exact production year and engine should be verified before ordering oil-service components.
BMW 528i Oil Change
Compatible versions of the F10 BMW 528i use the N20/N26 turbocharged four-cylinder engine.
This is particularly important because the 528i model designation was used across different generations and engines.
Do not assume that every BMW 528i uses the same:
- Oil filter
- Oil specification
- Oil quantity
- Service components
Always identify the actual engine first.
BMW X1 sDrive28i Oil Change
Compatible versions of the E84 BMW X1 sDrive28i use the N20 turbocharged four-cylinder.
The compact X1 platform may be very different from an F30 328i or F10 528i, but compatible N20-powered versions share many engine-maintenance components.
Parts compatibility should still be confirmed against the exact vehicle before ordering.
BMW Z4 sDrive28i Oil Change
The E89 BMW Z4 sDrive28i is another N20-powered application.
Its turbocharged four-cylinder engine distinguishes it from other Z4 versions using different BMW engine families.
Therefore:
Z4 does not automatically mean N20.
The specific model designation and engine must be checked.
For this application, look specifically for the Z4 sDrive28i and verify the production year.
Why Turbocharged Engines Depend Heavily on Engine Oil
The turbocharger is one of the most important reasons to pay attention to oil quality.
A turbocharger operates at extremely high rotational speeds and temperatures.
Engine oil circulates through the turbocharger to lubricate critical bearing surfaces while also helping manage heat.
That means neglected oil affects more than the engine's crankshaft and valvetrain.
Clean, specification-correct oil is also important to the turbocharger lubrication system.
Why Replace the Oil Filter Every Time?
A new engine oil service should normally include a new oil filter.
The filter captures contaminants circulating through the lubrication system.
As mileage accumulates, the filtration media collects:
- Fine debris
- Carbon-related contamination
- Wear particles
- Other suspended contaminants
Putting fresh oil into the engine while retaining an old filter defeats part of the purpose of performing a complete service.
For routine maintenance:
New Oil + New Filter + New Applicable Seals
is the preferred approach.
BMW Oil Filter 11427640862
One important oil-filter reference for compatible N20/N26 applications is:
BMW 11427640862
This cartridge-style filter is used across numerous compatible BMW turbocharged four-cylinder applications.
Because multiple filter manufacturers may offer replacements that cross-reference to the BMW number, the BMW OEM reference should be used as the primary compatibility reference.
Always confirm exact vehicle fitment before installation.
Replace the O-Rings Too
Cartridge oil filters typically use sealing O-rings around the filter housing components.
These seals are exposed to:
- Engine heat
- Compression
- Oil
- Repeated heating and cooling
- Age
An old O-ring can become hardened or flattened.
Installing the new seals supplied with the replacement filter helps reduce the risk of leakage after service.
Make sure each O-ring is installed in its correct groove.
How Much Oil Does an N20 or N26 Need?
This is an area where it is important not to confuse kit quantity with engine capacity.
A service package may contain:
5 Liters of Engine Oil
That does not automatically mean every compatible vehicle should receive exactly 5 liters.
Actual refill requirements can vary according to the vehicle and service conditions.
Always verify the specified capacity for the exact:
Year + Model + Engine
before filling.
Don't Automatically Pour the Whole Container Into the Engine
If your oil-change package contains a 5-liter container, do not assume the entire container belongs in the engine.
A better procedure is:
- Verify the specified refill capacity.
- Add the appropriate initial quantity.
- Start the engine according to the correct service procedure.
- Allow the oil to circulate.
- Inspect for leaks.
- Verify the oil level.
- Add additional oil only when required.
Overfilling the engine is not beneficial.
Basic BMW N20/N26 Oil Change Procedure
A typical N20/N26 oil service generally includes:
- Bring the engine to an appropriate service condition.
- Safely raise and support the vehicle if required.
- Remove applicable underbody panels.
- Position the drain container correctly.
- Drain the used engine oil.
- Replace the applicable drain-plug sealing component.
- Remove the oil-filter housing cap.
- Remove the old cartridge filter.
- Remove the old O-rings.
- Install the replacement cartridge filter.
- Install the new applicable seals.
- Lubricate applicable O-rings with clean engine oil where specified.
- Reassemble using the correct BMW torque specifications.
- Add the specified initial oil quantity.
- Start the engine and allow oil to circulate.
- Inspect the filter housing and drain area for leakage.
- Verify the engine oil level.
- Correct the oil level if necessary.
Always use the correct BMW service information and torque specifications for the exact vehicle.
Inspect the Engine During Every Oil Change
Oil-change time provides a useful opportunity to look for developing problems.
Inspect areas around the engine for:
- Oil leaks
- Coolant leaks
- Filter-housing leakage
- Damaged hoses
- Aging rubber components
- Damaged wiring
- Fluid underneath the engine
- Abnormal belt wear
- Turbocharger-related oil leakage
Finding a developing issue during routine maintenance may prevent it from becoming a larger repair.
Inspect the Old Oil Filter
Before discarding the used filter, visually inspect it.
Look for:
- Metallic particles
- Excessive sludge
- Unusual debris
- Damaged filter media
- Abnormal contamination
A filter inspection alone cannot diagnose an engine problem, but unusual material can be a reason to investigate further.
N20/N26 vs B46/B48 – Important Fitment Difference
BMW eventually transitioned from the N20/N26 family to newer B46/B48 modular four-cylinder engines.
This matters when ordering an oil-change kit.
A later BMW carrying a similar model badge may use a completely different engine.
For example, two vehicles that appear similar externally may require different:
- Oil filters
- Filter seals
- Oil specifications
- Service parts
Therefore:
Never order solely by model badge.
Confirm the engine first.
F30 328i vs E90 328i
This is another common source of confusion.
F30 328i
Compatible production years can use the N20/N26 turbocharged four-cylinder.
E90 328i
Typically uses a naturally aspirated BMW inline-six engine from a different engine family.
They are both called 328i, but their engine-service requirements are not the same.
This is why year and chassis generation matter.
Common N20/N26 Oil Change Mistakes
Avoid these common mistakes:
- Ordering by
328ior another badge alone - Confusing E90 and F30 applications
- Confusing N20/N26 with B46/B48
- Assuming all BMW four-cylinder engines use the same filter
- Ignoring model year
- Ignoring engine identification
- Reusing an old oil filter
- Reusing worn O-rings
- Installing the filter O-ring incorrectly
- Guessing torque specifications
- Assuming kit quantity equals engine capacity
- Automatically pouring the entire container into the engine
- Overfilling
- Ignoring existing oil leaks
- Failing to verify the final oil level
BMW N20 & N26 5W-40 FAQ
What oil is covered in this guide?
Liqui Moly Molygen New Generation SAE 5W-40.
What engines does this guide focus on?
BMW's N20 and N26 turbocharged four-cylinder gasoline engines.
Which BMW models commonly use these engines?
Compatible applications include versions of the 228i, 320i, 328i, 428i, 528i, X1 sDrive28i and Z4 sDrive28i.
What BMW oil-filter reference is associated with the kit?
BMW 11427640862.
Does this kit fit every BMW 328i?
No. The 328i badge was used across different generations and engine families.
Is an E90 328i the same as an F30 328i?
No. Their engine families and maintenance requirements differ.
Does every 228i or 428i use the N20/N26?
No. BMW transitioned to newer engines during later production, so the exact year and engine must be verified.
Should I use all 5 liters?
Not automatically. Verify the exact engine refill capacity and check the final oil level.
Maintain Your BMW N20 or N26 the Right Way
BMW's N20 and N26 engines combine direct injection, turbocharging and sophisticated engine-management technology in a compact four-cylinder package.
For compatible applications, Liqui Moly Molygen New Generation 5W-40 provides a fully synthetic lubrication option designed around wear protection, friction reduction, engine cleanliness and stable lubrication.
Combining fresh engine oil with the correct cartridge filter and new sealing components provides the foundation for a complete routine oil service.
The most important rule remains simple:
Verify the exact year, model, engine and required oil specification before ordering.
