BMW S52 10W-40 Oil Change Guide – E36 M3 & Z3 M with Liqui Moly MoS2
The BMW S52 3.2-liter inline-six is best known for powering the North American E36 M3 and S52-equipped versions of the BMW Z3 M Roadster and M Coupe. These naturally aspirated BMW M engines are now enthusiast classics, making consistent lubrication and filtration especially important as mileage and age accumulate.
For owners looking for a semi-synthetic 10W-40 option, Liqui Moly MoS2 Anti-Friction SAE 10W-40 combines a conventional engine-oil additive package with molybdenum disulfide (MoS2). Liqui Moly specifically positions the oil for older-generation engines and lists ACEA A3/B4 and API SL among its recommended specifications.
Why Oil Maintenance Matters on the BMW S52
The S52's lubrication system is responsible for protecting critical internal components every time the engine runs.
Engine oil circulates through and protects areas including:
- Crankshaft and connecting rod bearings
- Pistons and cylinder walls
- Camshafts
- Valvetrain components
- VANOS components
- Timing chain components
- Other high-friction internal surfaces
As oil accumulates mileage, repeated heat cycles and combustion contamination gradually affect its condition.
Replacing both the oil and filter as part of routine maintenance helps restore clean lubrication and filtration.
Why Liqui Moly MoS2 10W-40?
The defining feature of Liqui Moly MoS2 Anti-Friction 10W-40 is its molybdenum disulfide additive package.
According to Liqui Moly, MoS2 forms a high-pressure and temperature-resistant lubricating layer on friction surfaces. The formulation is intended to provide additional wear protection and safety reserves while reducing friction.
Liqui Moly highlights characteristics including:
- Excellent wear protection
- Good cold-start behavior
- Stable viscosity
- Aging stability
- Engine cleanliness
- Rapid lubrication after cold starts
- Additional protection under demanding conditions
- Compatibility with catalytic converters
The manufacturer specifically describes the oil as semi-synthetic and particularly suited to older-generation gasoline engines.
Liqui Moly MoS2 10W-40 Specifications
| Specification | Details |
|---|---|
| SAE Viscosity | 10W-40 |
| Oil Type | Semi-Synthetic |
| ACEA | A3/B4 |
| API | SL |
| Additive Technology | Molybdenum Disulfide (MoS2) |
| Gasoline Engines | Yes |
| Diesel Engines | Yes |
| Turbocharger Tested | Yes |
| Catalytic Converter Compatible | Yes |
Liqui Moly currently recommends MoS2 10W-40 for applications requiring ACEA A3/B4 or API SL and states that it is suitable for gasoline and diesel engines, including turbocharged applications.
What Does MoS2 Do?
MoS2 stands for molybdenum disulfide.
Rather than being simply a marketing name, MoS2 is the solid lubricant used in this formulation.
Liqui Moly explains that the MoS2 additive forms a high-load lubricating film on rubbing and sliding metal surfaces. The goal is to provide additional protection when engine components are operating under friction and load.
This makes the oil particularly interesting for enthusiasts maintaining older engines where wear protection is a major consideration.
Why Is Liqui Moly MoS2 Oil Gray?
Owners using this oil for the first time may notice something unusual:
The oil can appear gray.
That is normal.
Liqui Moly states that the MoS2 formulation itself gives the oil its characteristic gray color.
The color should therefore not automatically be mistaken for contamination when pouring fresh MoS2 oil from a new container.
Understanding SAE 10W-40
The viscosity designation can be divided into two parts.
10W
The first number describes the lubricant's low-temperature viscosity behavior.
Oil must circulate throughout the engine during startup to provide lubrication to critical internal surfaces.
40
The second number represents the oil's viscosity grade at normal operating temperature.
The objective is to maintain an appropriate lubricating film once the engine is hot.
Liqui Moly specifically highlights both good cold-start behavior and stable viscosity as properties of MoS2 10W-40.
BMW E36 M3 S52 Oil Change
The North American E36 M3 is the primary vehicle most enthusiasts associate with the S52.
When shopping for maintenance components, however, simply searching for an E36 oil change kit is not precise enough.
BMW produced the E36 platform with multiple engines.
For this reason, the better identification is:
BMW E36 M3 + S52 3.2L
Engine code should always be considered alongside model and production year when selecting service components.
BMW Z3 M Roadster S52 Oil Change
The S52 was also installed in compatible North American versions of the BMW Z3 M Roadster.
Although the chassis and body are different from the E36 M3, the shared engine architecture creates overlap in engine-maintenance requirements.
A complete routine oil service should include the appropriate:
- Engine oil
- Oil filter
- Filter housing seals
- Drain sealing component
- Refill quantity
- Final oil-level check
BMW Z3 M Coupe S52 Oil Change
The Z3 M Coupe is another important S52 application.
Engine identification is particularly important with the Z3 M because the model was produced with different BMW M engines over its production life.
An M Coupe badge by itself is therefore not enough information to select an oil-change kit.
S52 vs S54 – Don't Order by M Badge Alone
One of the biggest fitment mistakes BMW M owners can make is assuming that all similarly named M models use the same service components.
S52 Applications
Compatible North American applications include versions of:
E36 M3
Z3 M Roadster
Z3 M Coupe
S54 Applications
The S54 appears in vehicles including:
E46 M3
Later Z3 M Roadster
Later Z3 M Coupe
These engines should not automatically be treated as interchangeable for lubrication or filtration.
S52 ≠ S54
Always verify the engine before ordering.
MoS2 10W-40 vs Leichtlauf High Tech 5W-40
For SayParts customers comparing our S52 oil-change options, the distinction is important.
| MoS2 10W-40 | Leichtlauf High Tech 5W-40 | |
|---|---|---|
| Viscosity | 10W-40 | 5W-40 |
| Product Family | MoS2 Anti-Friction | Leichtlauf High Tech |
| Oil Type | Semi-Synthetic | Fully Synthetic |
| Main Feature | MoS2 solid lubricant | Modern high-performance formulation |
| Primary SEO Intent | S52 10W-40 | S52 5W-40 |
Neither option should be presented as universally superior for every S52.
The correct oil choice should consider the vehicle manufacturer's requirements, climate, operating conditions, engine condition and maintenance strategy.
Why Replace the Oil Filter With Every Oil Change?
The engine oil filter captures contaminants carried through the lubrication system.
As mileage accumulates, the filter media retains debris and contamination that would otherwise continue circulating through the engine.
Installing fresh oil but retaining the old filter means the new lubricant immediately passes through previously used filtration media.
For a complete routine service, the preferred combination is:
Fresh Oil + New Filter + New Applicable Seals
BMW Oil Filter 11427833769
The S52 oil-change package is associated with BMW oil-filter reference:
11427833769
The system uses a cartridge-style filter installed inside the engine's oil-filter housing.
When replacing the filter, the applicable housing O-ring and sealing components should also be renewed.
MAHLE Oil Filter
The oil-change package pairs the Liqui Moly lubricant with a MAHLE cartridge oil filter.
The filter removes contaminants from the circulating engine oil while allowing the lubrication system to maintain the necessary flow.
During installation, don't focus only on the filter element itself.
The associated seals are also important service components.
Replace the Oil Filter Housing O-Ring
The large O-ring used by the cartridge filter housing is exposed to:
- Engine heat
- Hot engine oil
- Compression
- Repeated heat cycles
- Material aging
Over time, the old O-ring can become hardened or flattened.
Replacing it during the oil service helps maintain a proper seal.
The new O-ring must also be installed in the correct groove on the filter housing cap. Incorrect positioning can result in leakage even with a brand-new seal.
How Much Oil Does an S52 Need?
This is where an important distinction needs to be made.

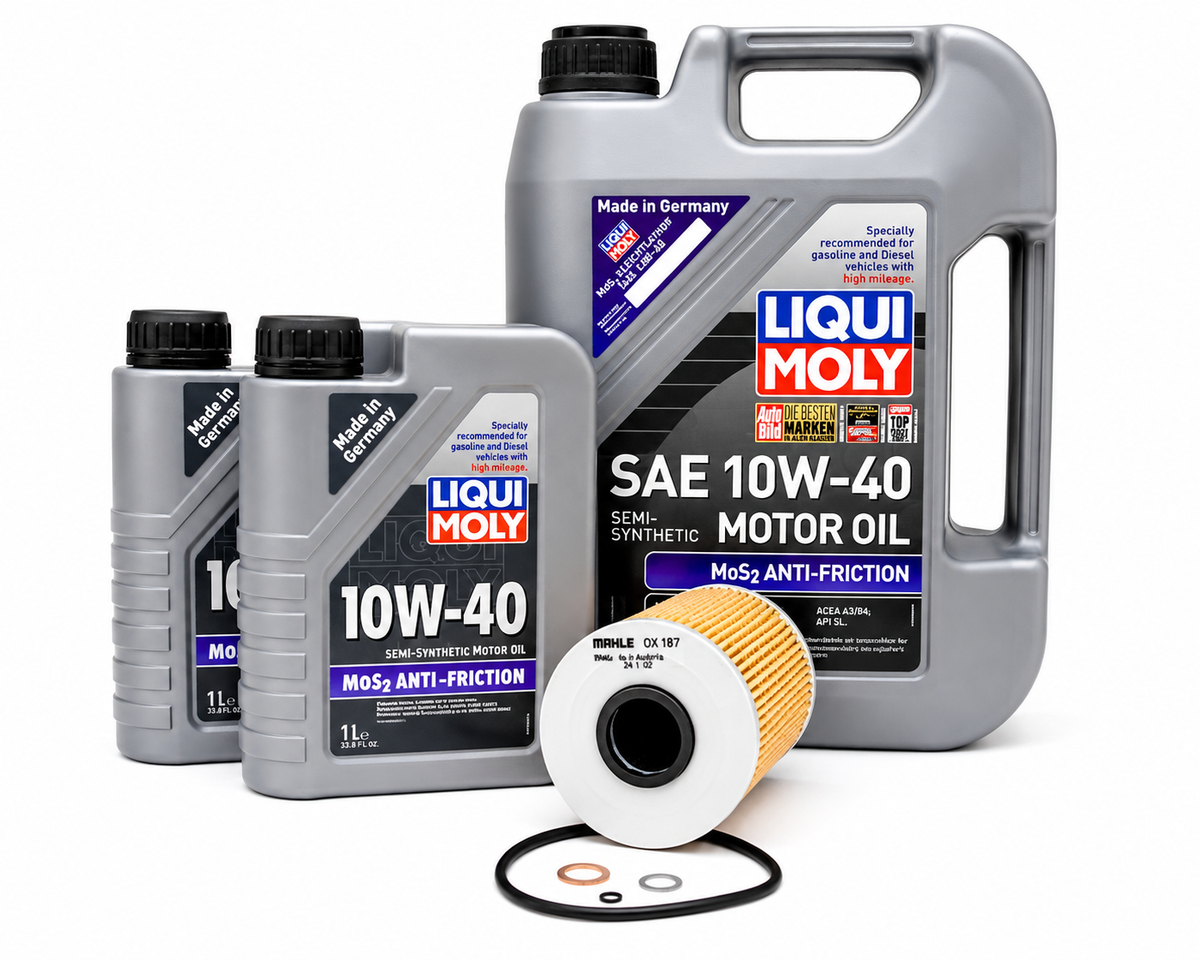

The oil-change kit contains:
7 Liters of Liqui Moly MoS2 10W-40
That describes the package quantity.
It does not mean the entire supplied quantity should automatically be poured into every compatible vehicle.
Kit Quantity ≠ Exact Refill Capacity
Always verify the specified engine oil capacity for the exact vehicle and confirm the final oil level after service.
Don't Automatically Pour All 7 Liters Into the Engine
More engine oil does not equal more engine protection.
Overfilling can create its own problems.
A better procedure is to:
- Verify the specified refill capacity.
- Add the appropriate initial quantity.
- Start the engine according to the correct procedure.
- Allow oil to circulate.
- Inspect for leaks.
- Check the oil level.
- Add additional oil only if necessary.
Keep any unused oil for appropriate future top-offs.
Basic BMW S52 Oil Change Procedure
A typical oil service generally includes:
- Bring the engine to the appropriate service condition.
- Safely raise and support the vehicle if required.
- Position a suitable oil drain container.
- Remove the drain plug.
- Allow the old oil to drain.
- Replace the applicable drain-plug sealing washer.
- Open the oil-filter housing.
- Remove the old cartridge filter.
- Remove the old filter housing O-ring.
- Install the new MAHLE filter.
- Install the new applicable seals.
- Lubricate the O-ring with clean engine oil where specified.
- Reinstall the filter housing cap.
- Reinstall the drain plug.
- Tighten components to the correct BMW specifications.
- Add the appropriate initial oil quantity.
- Start the engine and allow the lubrication system to circulate the new oil.
- Inspect the filter housing and drain area for leakage.
- Verify the final oil level.
- Add oil only when required.
Always follow the appropriate BMW service information and torque specifications for the exact vehicle.
Inspect Your S52 While Changing the Oil
An oil change is also a good opportunity to inspect an older BMW M engine.
Look around:
- Valve cover area
- VANOS area
- Oil-filter housing
- Oil pan
- Drain plug
- Front engine area
- Cooling system
- Power steering components
- Underside of the engine
Finding fresh oil around one of these areas may indicate an existing leak that should be investigated separately.
An oil change itself will not repair a leaking gasket or seal.
Inspect the Used Oil Filter
Before disposing of the old cartridge, visually inspect it.
Look for:
- Metallic particles
- Sludge
- Abnormal debris
- Damaged filter media
- Unusual contamination
A visual inspection cannot provide a complete engine diagnosis, but unusual material may justify additional investigation.
Is MoS2 10W-40 Only for BMW Engines?
No.
Liqui Moly describes the product for gasoline and diesel engines and states that it has been tested with catalytic converters and turbochargers. The manufacturer particularly highlights older-generation engine applications.
This guide, however, focuses specifically on compatible BMW S52 applications.
BMW S52 MoS2 10W-40 FAQ
What oil does this guide cover?
Liqui Moly MoS2 Anti-Friction SAE 10W-40.
Is Liqui Moly MoS2 10W-40 fully synthetic?
No. Liqui Moly describes it as a semi-synthetic specialty motor oil.
What is MoS2?
MoS2 is molybdenum disulfide, a solid lubricant used in the formulation to provide an additional lubricating layer on friction surfaces.
What specifications does the oil carry?
Liqui Moly recommends the product for applications requiring ACEA A3/B4 and API SL.
Why is fresh MoS2 oil gray?
Liqui Moly states that the MoS2 formulation gives the oil its gray appearance.
What engine is this guide focused on?
The BMW S52 3.2-liter inline-six.
What vehicles are the primary applications?
S52-equipped versions of the:
BMW E36 M3
BMW Z3 M Roadster
BMW Z3 M Coupe
Is an S52 the same as an S54?
No. They are different BMW M engine families.
Does this guide apply to an E46 M3?
No. The E46 M3 uses the S54 engine rather than the S52.
Should all 7 liters supplied with the kit be poured into the engine?
Not automatically. Always verify the correct refill capacity and final oil level for the exact vehicle.
Maintain Your BMW S52 with the Right Oil and Filter
BMW's S52 represents an important period in naturally aspirated BMW M performance, powering enthusiast favorites such as the E36 M3 and S52-equipped Z3 M Roadster and Coupe.
Liqui Moly MoS2 Anti-Friction 10W-40 takes a different approach from a conventional engine oil by incorporating molybdenum disulfide into its semi-synthetic formulation. Liqui Moly states that this creates an additional high-pressure and temperature-resistant lubricating layer on friction surfaces while providing strong wear protection, cold-start lubrication and engine cleanliness.
Combined with a fresh MAHLE oil filter and new applicable sealing components, it provides a complete maintenance option for compatible S52 applications.
Always verify the exact year, model, engine and oil requirements before servicing your BMW.
