BMW S54 10W-60 Oil Change Guide – E46 M3, Z3 M & Z4 M
The BMW S54 is one of the most celebrated naturally aspirated engines produced by BMW M. Found in the E46 M3, later Z3 M Coupe and Roadster, and E85/E86 Z4 M, the S54 combines a high-revving 3.2-liter inline-six design with the performance-focused engineering that defined BMW M cars of its era.
Proper lubrication is especially important for an engine designed to operate at high RPM and under demanding loads. Choosing the correct engine oil, replacing the filter during every service, and verifying exact vehicle fitment are fundamental parts of S54 maintenance.
For compatible applications, the Genuine BMW M TwinPower Turbo 10W-60 S54 Oil Change Kit combines 5 liters of Genuine BMW M TwinPower Turbo SAE 10W-60 engine oil with a MAHLE OX 187D oil filter and applicable service seals.
Why Oil Maintenance Matters on the BMW S54
The S54B32 is a 3.2-liter naturally aspirated inline-six developed by BMW M.
Unlike conventional BMW engines from the same period, the S54 was engineered around performance and high engine speeds. Its lubrication system must protect numerous heavily loaded and fast-moving internal components.
Engine oil helps protect and lubricate:
- Connecting rod bearings
- Main bearings
- Camshafts
- Valvetrain components
- VANOS components
- Timing components
- Pistons and cylinder walls
- Other internal bearing and friction surfaces
As engine oil accumulates mileage, heat cycles, and contaminants, its condition gradually deteriorates.
Regular oil and filter changes help restore clean lubrication and remove contaminants captured during normal engine operation.
Why 10W-60 for the BMW S54?
One of the most recognizable characteristics of S54 maintenance is the use of SAE 10W-60 engine oil.
The S54's high-RPM architecture creates lubrication demands that differ significantly from those of a conventional BMW inline-six.
The 10W-60 designation describes the oil's viscosity characteristics.
10W
The first portion relates to the oil's low-temperature viscosity behavior.
60
The second portion represents its viscosity grade at operating temperature.
The wide viscosity range is associated with the demanding operating conditions encountered by high-performance BMW M engines of this generation.
Genuine BMW M TwinPower Turbo 10W-60
This service package uses:
Genuine BMW M TwinPower Turbo SAE 10W-60
The product should not be confused with older references to Castrol TWS simply because older catalog URLs or historical product descriptions may contain the Castrol name.
The oil supplied in this package is BMW-branded Original/Genuine BMW Engine Oil.
For owners who prefer BMW-branded lubricant for their S54, the Genuine BMW 10W-60 S54 Oil Change Kit provides the oil and filter components together.

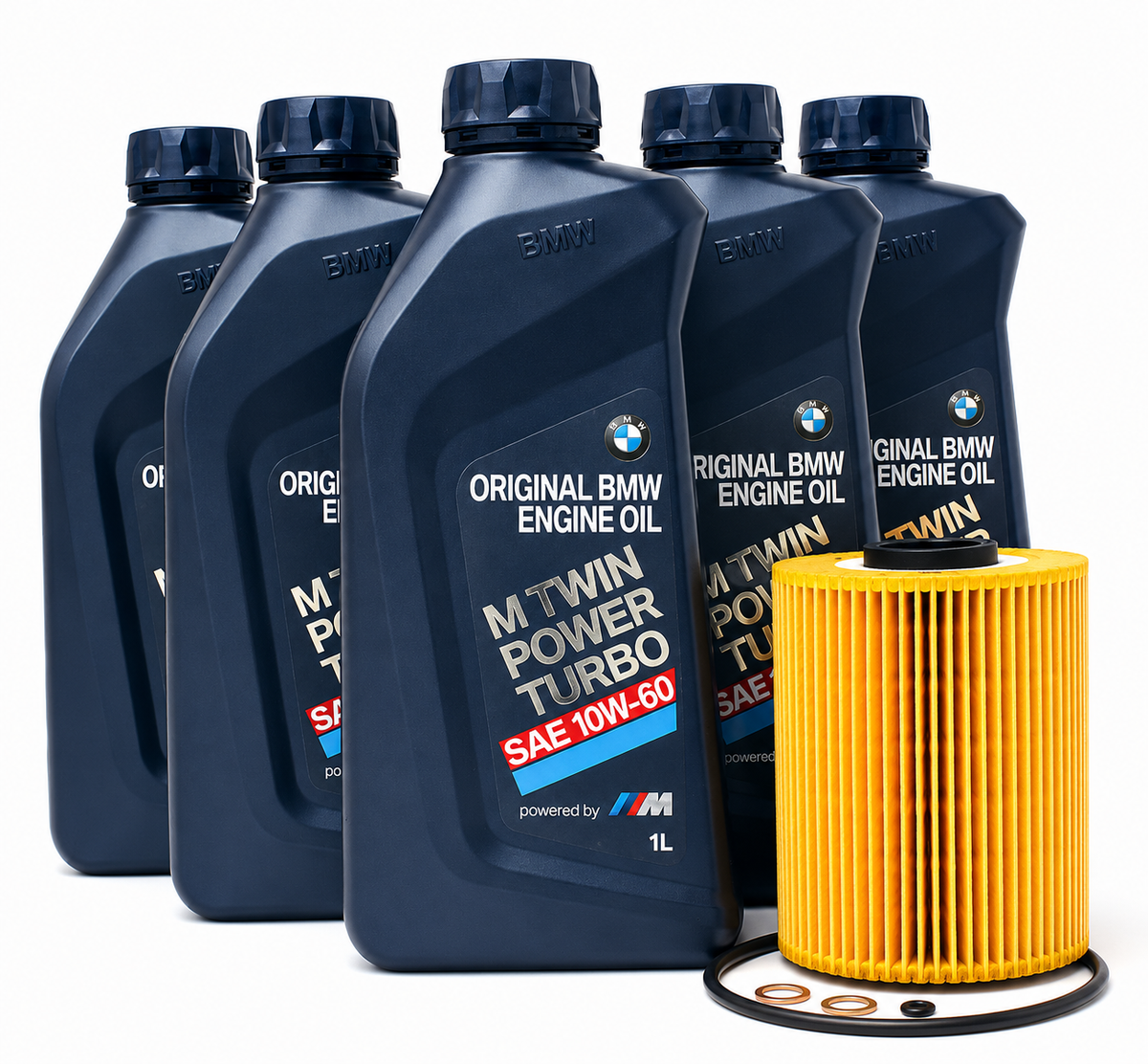

What's Included in the S54 Oil Change Kit?
| Quantity | Component | Brand / Specification |
|---|---|---|
| 5 | Engine Oil | Genuine BMW M TwinPower Turbo 10W-60 – 1L |
| 5L Total | Engine Oil | Genuine BMW M TwinPower Turbo SAE 10W-60 |
| 1 | Engine Oil Filter | MAHLE OX 187D |
| 1 | Filter Housing Seal | Included |
| 1 | Upper Filter Screw Washer | Included |
| 1 | Lower Filter Screw O-Ring | Included |
| 1 | Copper Drain Plug Seal | Included |
The oil filter corresponds to BMW filter reference 11427833769, with MAHLE OX 187D as the OE-quality filter application.
Why MAHLE OX 187D?
The oil filter is one component where quality should not be overlooked.
This package includes:
MAHLE OX 187D
BMW Reference: 11427833769
Filter Type: Cartridge Oil Filter
Brand: MAHLE
MAHLE is an original-equipment supplier for this BMW filter application.
The filter kit also includes service sealing components rather than requiring the old seals to be reused.
Fresh engine oil combined with a fresh filtration element provides a proper starting point for the next maintenance interval.
BMW E46 M3 Oil Change
The E46 M3 is the best-known application of the S54 engine.
Compatible U.S.-market model years include:
2001 BMW M3
2002 BMW M3
2003 BMW M3
2004 BMW M3
2005 BMW M3
2006 BMW M3
Both Coupe and Convertible versions use the S54 3.2L inline-six.
One important mistake to avoid is ordering parts simply by searching for "BMW E46."
The E46 platform includes many non-M models with completely different engines.
An E46 325i or 330i does not have the same engine or oil-service requirements as an E46 M3.
For accurate parts selection, use:
BMW E46 M3 → S54 3.2L
For compatible vehicles, the E46 M3 Genuine BMW 10W-60 Oil Change Kit provides BMW M 10W-60 oil with the correct MAHLE filter package.
BMW Z3 M S54 Oil Change
The BMW Z3 M requires more careful fitment verification.
Not every Z3 M uses the S54.
For the U.S. market, the later 2001-2002 Z3 M Coupe and Z3 M Roadster received the S54 engine.
Compatible S54 applications include:
2001 BMW Z3 M Coupe
2002 BMW Z3 M Coupe
2001 BMW Z3 M Roadster
2002 BMW Z3 M Roadster
Earlier Z3 M models can use different BMW M engines.
Therefore, ordering an oil-service kit based only on the words "Z3 M" is not sufficient.
Always verify that the vehicle is equipped with the:
S54B32
before selecting S54-specific maintenance components.
BMW Z4 M Oil Change
BMW continued using the S54 in the later Z4 M.
Compatible models include:
2006 BMW Z4 M Roadster – E85
2007 BMW Z4 M Roadster – E85
2008 BMW Z4 M Roadster – E85
and:
2006 BMW Z4 M Coupe – E86
2007 BMW Z4 M Coupe – E86
2008 BMW Z4 M Coupe – E86
These cars use the same fundamental S54 3.2L engine family as the E46 M3.
For compatible applications, the BMW Z4 M S54 10W-60 Oil Change Kit combines Genuine BMW engine oil with a MAHLE OX 187D oil filter.
E46 M3 vs Z3 M vs Z4 M
Although these cars are very different, their compatible versions share the S54 engine.
| BMW Model | Chassis | Engine |
|---|---|---|
| E46 M3 Coupe | E46 | S54B32 3.2L I6 |
| E46 M3 Convertible | E46 | S54B32 3.2L I6 |
| Z3 M Coupe | E36/8 | S54B32 3.2L I6 |
| Z3 M Roadster | E36/7 | S54B32 3.2L I6 |
| Z4 M Roadster | E85 | S54B32 3.2L I6 |
| Z4 M Coupe | E86 | S54B32 3.2L I6 |
This is why shopping by engine code can be particularly useful for BMW M maintenance.
Why High-RPM Engines Place More Demands on Oil
The S54 is famous for its ability to operate at very high engine speeds.
As RPM increases, many internal engine components move faster and experience significant mechanical loads.
The engine oil must maintain a protective lubricating film while circulating rapidly throughout the engine.
Correct lubrication is especially important for:
- Crankshaft bearings
- Connecting rod bearings
- Camshaft journals
- Valvetrain components
- VANOS components
- Timing-system components
- Cylinder walls
This is one reason oil quality and maintenance receive so much attention among S54 owners.
S54 Rod Bearings and Oil Maintenance
Rod bearings are frequently discussed in connection with BMW S54 maintenance.
Connecting rod bearings rely on a pressurized film of engine oil between the crankshaft journal and bearing surface.
Regular oil changes help ensure that clean lubricant circulates through the engine.
However, there is an important distinction:
Fresh engine oil cannot repair worn bearings.
An oil change is preventive maintenance, not a mechanical repair.
If abnormal metallic contamination is discovered in the oil or filter, or if there are other indications of an internal engine problem, the underlying cause should be properly diagnosed.
Inspect the Old Oil Filter
When performing an S54 oil change, do not immediately discard the old filter without looking at its condition.
Check for:
- Metallic particles
- Unusual debris
- Abnormal contamination
- Damaged filter media
- Unusual oil appearance
Finding contamination does not automatically identify a specific mechanical problem.
However, abnormal metallic material or excessive debris should not simply be ignored.
Why Replace the Oil Filter With Every Oil Change?
Engine oil continuously carries contaminants toward the filtration system.
Over time, the filter media accumulates these contaminants.
Installing fresh engine oil while leaving an old filter in service means the new oil immediately circulates through filtration media that has already accumulated mileage and contamination.
The complete BMW S54 oil change kit includes a MAHLE OX 187D cartridge filter so the oil and filter can be serviced together.
Replace the Seals During Service
The oil filter package includes applicable sealing components.
These should be replaced during the oil service rather than automatically reusing old seals.
Depending on the component, repeated compression, heat cycles, and age can affect sealing performance.
Fresh seals help reduce the risk of oil seepage after service.
Make sure all O-rings are installed in their correct positions and lightly lubricated with clean engine oil where specified.
How Much Oil Is Included?
This package contains:
5 Liters
of Genuine BMW M TwinPower Turbo SAE 10W-60.
The oil is supplied as:
5 × 1-liter bottles
There is an important distinction between kit quantity and engine refill quantity.
Do not assume that the amount supplied in the package automatically represents the exact amount required to refill every compatible S54 application.
Always verify the correct oil capacity and filling procedure for your exact vehicle.
Basic BMW S54 Oil Change Procedure
A typical S54 oil service includes the following general steps:
- Bring the engine to the appropriate service condition.
- Safely raise and support the vehicle when required.
- Drain the used engine oil according to the correct BMW procedure.
- Replace the applicable drain plug sealing component.
- Remove the existing oil filter.
- Install the new MAHLE OX 187D filter.
- Replace the supplied filter housing seal and applicable O-rings.
- Lightly lubricate new O-rings with clean engine oil where required.
- Reassemble components using the correct BMW torque specifications.
- Add the appropriate amount of Genuine BMW M 10W-60.
- Start the engine and allow the oil to circulate.
- Inspect the filter housing and drain area for leakage.
- Verify the final engine oil level.
- Correct the oil level if necessary.
- Perform a final leak inspection.
Always follow the correct BMW factory service procedure and torque specifications for the exact vehicle.
Don't Overfill the S54
More engine oil does not automatically mean more protection.
Overfilling can cause its own problems.
Add the appropriate amount of oil according to the BMW service procedure, then verify the final level.
Do not simply pour in every bottle supplied with a service package without checking the vehicle's actual requirements.
What Else Should You Inspect During an S54 Oil Change?
Routine oil service is an excellent opportunity to inspect other areas of the vehicle.
Look for:
- Engine oil leaks
- Oil filter housing leakage
- Drain plug leakage
- Coolant leaks
- Accessory belt wear
- Damaged hoses
- Aging rubber components
- Damaged electrical connectors
- Fluid underneath the engine
- Abnormal contamination in the old oil or filter
Finding a developing problem during routine maintenance can help prevent a more significant failure later.
S54 vs S65: Don't Order the Wrong Kit
The S54 and S65 are completely different BMW M engines.
BMW S54
3.2L Naturally Aspirated Inline-6
Common applications:
E46 M3
Z3 M
Z4 M
BMW S65
4.0L Naturally Aspirated V8
Primary application:
E90 / E92 / E93 M3
Although both engines are associated with BMW M and 10W-60 engine oil, their oil filters and service components should not automatically be assumed interchangeable.
Always order maintenance parts according to the exact engine.
S54 vs S55: Another Important Difference
The later S55 is also completely different.
The S55 is a:
3.0L Twin-Turbocharged Inline-6
used in vehicles such as the F80 M3 and F82 M4.
Therefore:
S54 ≠ S55
A product labeled "BMW M3 oil change kit" is not specific enough by itself.
Engine generation matters.
Common BMW S54 Oil Change Mistakes
Avoid these common mistakes:
- Ordering by BMW model name alone
- Confusing standard E46 models with the E46 M3
- Assuming every Z3 M uses the S54
- Confusing S54 and S65 maintenance parts
- Confusing S54 and S55 engines
- Selecting oil only by viscosity without checking the application
- Reusing the old oil filter
- Reusing worn sealing components
- Incorrectly installing filter O-rings
- Assuming kit quantity equals exact refill quantity
- Overfilling the engine
- Guessing torque specifications
- Ignoring metallic contamination in the old filter
- Failing to inspect the engine for leaks after service
BMW S54 Oil Change FAQ
What engine is the BMW S54?
The S54B32 is a 3.2-liter naturally aspirated inline-six developed by BMW M.
What engine oil is included in this kit?
Genuine BMW M TwinPower Turbo SAE 10W-60.
Is the oil Castrol?
The product supplied in this package is BMW-branded Genuine/Original BMW M TwinPower Turbo 10W-60, not a Castrol-branded bottle.
How much engine oil is included?
The package contains 5 liters, supplied as five 1-liter bottles.
What oil filter is included?
MAHLE OX 187D.
What is the BMW oil filter reference?
11427833769.
Does this fit the E46 M3?
It is intended for compatible E46 M3 models equipped with the S54 3.2L engine.
Does it fit the Z3 M?
It applies to compatible S54-powered Z3 M applications. Engine verification is especially important because not every Z3 M uses the S54.
Does it fit the Z4 M?
It applies to compatible E85 Z4 M Roadster and E86 Z4 M Coupe models equipped with the S54.
Does it fit an E90/E92/E93 M3?
No. Those vehicles use the S65 4.0L V8 and require a different oil-service package.
Does it fit the F80 M3?
No. The F80 M3 uses the S55 turbocharged inline-six.
Complete Your BMW S54 Oil Service
Whether you're maintaining an E46 M3, S54-powered Z3 M, or E85/E86 Z4 M, selecting the correct engine oil and filter is an important part of routine BMW M maintenance.
This package combines:
5L Genuine BMW M TwinPower Turbo SAE 10W-60
MAHLE OX 187D oil filter
BMW filter reference 11427833769
Applicable filter and service seals
For your next service, shop the Genuine BMW M TwinPower Turbo 10W-60 S54 Oil Change Kit at SayParts.
You can also browse BMW maintenance parts and oil change kits at SayParts.
