Motorcraft DG-513 Ignition Coil 6-Pack — The Complete Fix for Ford 3.0L V6 Misfires
If your Ford Escape, Taurus, Five Hundred, or Freestyle is throwing misfire codes and running rough, the Motorcraft DG-513 ignition coil is almost certainly the culprit. The 3.0L DOHC V6 is one of Ford's most widely used engines — and when the ignition coils start to go, replacing the complete set of 6 at once is the smartest move you can make. Here's why, and how to do it yourself.
What is the Motorcraft DG-513?

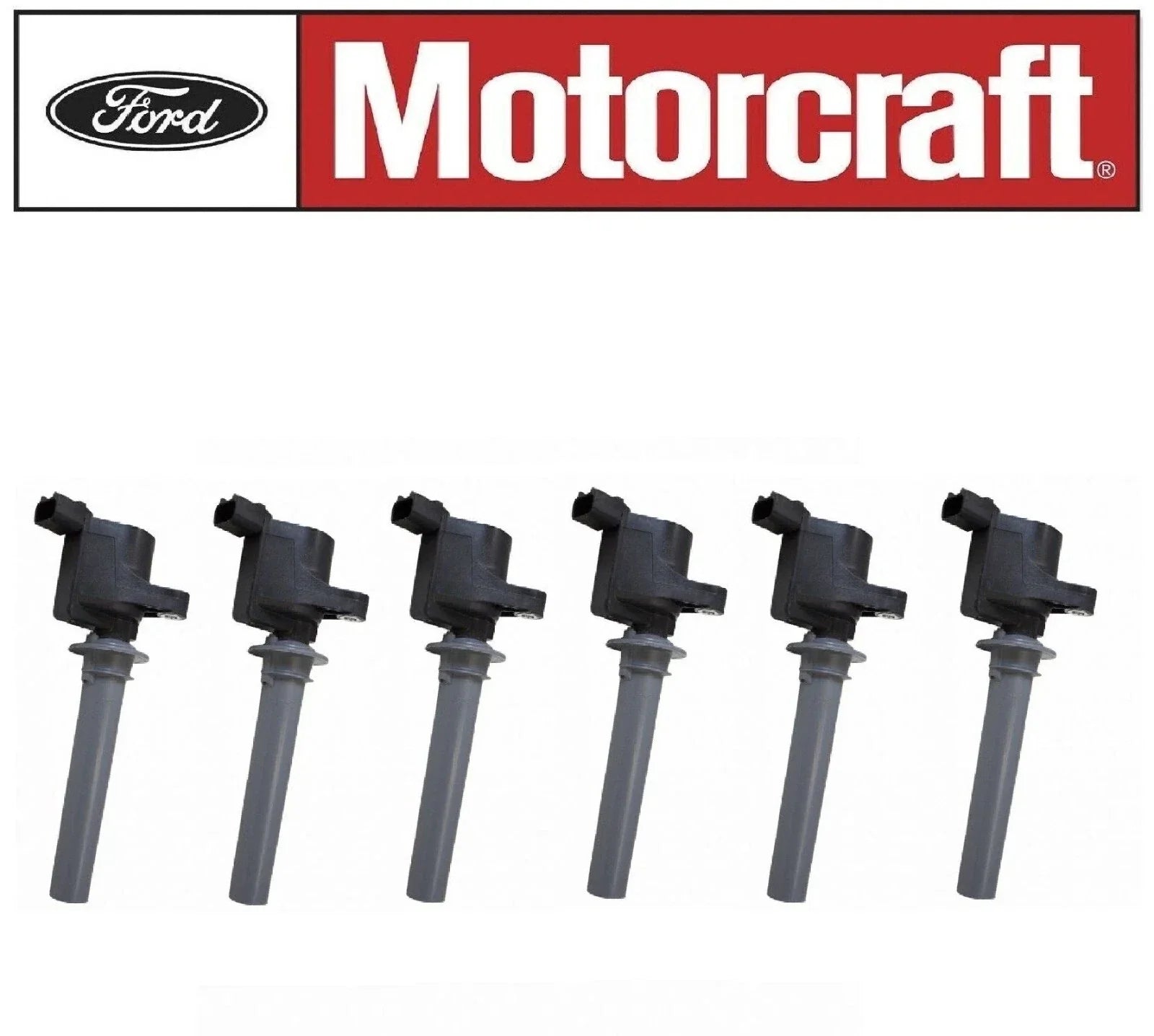

The DG-513 is a Genuine Motorcraft coil-on-plug ignition coil for Ford's 3.0L DOHC V6 Duratec engine. It sits directly on top of each spark plug — one coil per cylinder, six total for the V6 — and delivers a high-voltage spark every time that cylinder needs to fire. When a DG-513 fails, the affected cylinder misfires and you'll immediately notice rough running, hesitation, and a check engine light.
Symptoms of a failing DG-513 ignition coil
Check engine light with misfire codes P0300–P0306
Rough idle or engine shaking — especially noticeable at a stop
Hesitation or stumbling during acceleration
Poor fuel economy
Engine misfires under load
Hard starting in cold weather
The misfire code tells you exactly which cylinder has failed — P0301 is cylinder 1, P0302 is cylinder 2, and so on. But even if only one coil has triggered a code, read on to understand why replacing all 6 at once is the right call.
Why replace all 6 DG-513 coils at once?
This is the most important question Escape, Taurus, and Freestyle owners ask when they get a misfire code. Here's the honest answer:
All 6 coils have the same age and mileage — if one has failed, the others are under the same stress and close behind
A single failed coil puts extra ignition load on the remaining 5, accelerating their failure
Replacing one coil now and coming back 5 more times individually costs far more in total time and labor
Replacing all 6 at once guarantees balanced ignition performance across every cylinder
You save $216 vs buying 6 singles at AutoZone ($135 each)
Experienced Ford mechanics and dealership technicians almost always recommend the full 6-coil replacement on high-mileage 3.0L V6 engines. It's one of those jobs where doing it right once saves you money and headaches for years.
Key features of the Motorcraft DG-513
Genuine Motorcraft Part No: DG-513 — OEM Ford Part No: 2M2Z-12029-AC
Coil-on-plug design — direct fit, no wires or adapters needed
Steel lamination stack for consistent magnetic field and reliable spark output
RFI suppression via Ford-patented spring assembly inside the coil boot
Motorcraft 2-year / unlimited mile warranty — valid at any Ford dealer
Fits over 200 Ford, Mercury and Mazda vehicles
Vehicle compatibility — complete 6-coil V6 set
2001–2008 Ford Escape 3.0L DOHC V6
2000–2007 Ford Taurus 3.0L DOHC V6 (8th VIN digit S)
2005–2007 Ford Five Hundred 3.0L V6
2005–2007 Ford Freestyle 3.0L V6
2005–2008 Mercury Mariner 3.0L V6
2000–2005 Mercury Sable 3.0L DOHC V6
2005–2007 Mercury Montego 3.0L V6
Cross references: 2M2Z-12029-AC, 8M2E-12A366-AA, DG500, FD502, UF406, C1458
How to replace all 6 DG-513 coils — step by step
Disconnect the negative battery terminal before starting
Remove the engine cover if present
Working one cylinder at a time, unplug the electrical connector from the coil
Remove the coil retaining bolt
Pull the old coil straight up off the spark plug
Push the new DG-513 firmly down onto the spark plug until it seats fully
Reinstall the bolt and reconnect the electrical connector
Repeat for all 6 cylinders
Reconnect the battery, clear any misfire codes, and test drive
💡 Pro tip: While you have the coils out, replace your spark plugs too for a complete tune-up. The correct Motorcraft plug for your 3.0L V6 is the SP-433 (double platinum). Check our SP-433 6-Pack: https://sayparts.com/products/motorcraft-sp-433-spark-plug-6-pack-ford-escape-taurus-3-0l-v6
🎥 Every order from SayParts includes a FREE step-by-step installation video covering the complete DG-513 6-coil replacement on your Ford 3.0L V6.
Why buy from SayParts?
6 x Genuine Motorcraft DG-513 coils with 2-year / unlimited mile Ford warranty
Free installation video covering all 6 coils
Free worldwide shipping
Save $216 vs buying 6 singles at AutoZone ($135 each)
VIN verification available — not sure if this fits? Contact us before ordering
Don't replace one coil and wait for the next misfire. Replace all 6 Motorcraft DG-513 coils at once and restore full performance to your Ford 3.0L V6.
👉 Order the Motorcraft DG-513 6-Pack at SayParts: https://sayparts.com/products/motorcraft-dg-513-ignition-coil-6-pack-ford-escape-taurus-3-0l-v6
👉 Complete the tune-up — add SP-433 Spark Plug 6-Pack: https://sayparts.com/products/motorcraft-sp-433-spark-plug-6-pack-ford-escape-taurus-3-0l-v6
Fits 2001–2008 Ford Escape, 2000–2007 Ford Taurus, 2005–2007 Ford Five Hundred & Freestyle, and Mercury Mariner, Sable & Montego with 3.0L DOHC V6. Verify fitment with VIN before ordering.
