Complete Ford EcoBoost Maintenance Guide — Motorcraft DG-562 Ignition Coils + SP-550 Spark Plugs
If your Ford Escape, Fusion, Edge, Explorer, or Mustang EcoBoost is running erratically, experiencing ignition problems, or losing power, it likely needs a coil or spark plug replacement. This guide will cover exactly what the DG-562 coil and SP-550 spark plug do in your EcoBoost engine, why replacing them together is the right decision, and how you can do it yourself in under an hour.
Understanding the Ford EcoBoost Ignition System
Ford's 2.0L and 2.3L EcoBoost engines are turbocharged 4-cylinder engines. The turbocharger pumps more air into each cylinder, producing more power from a smaller displacement. However, this also means the ignition system has to work harder than in a naturally aspirated engine; Higher cylinder pressures require a stronger and more consistent spark from both the coil and the spark plug.
When the DG-562 coil or SP-550 spark plug begins to wear, the EcoBoost system is the first to notice. Ignition problems, hesitation under turbo pressure, and irregular idling are early warning signs that your ignition components need servicing.
Motorcraft DG-562 ignition coil - what it does and when it fails?
The DG-562 is the OEM coil ignition coil for Ford's 2.0L and 2.3L EcoBoost engines. One coil fits directly onto each spark plug – a total of 4 for a 4-cylinder engine. When the DG-562 fails:
The engine malfunction light illuminates with ignition failure codes P0300–P0304
Irregular idling, especially when stationary
Hesitation or wobbling during acceleration or under turbo pressure
Reduced turbo response and power output
Poor fuel economy

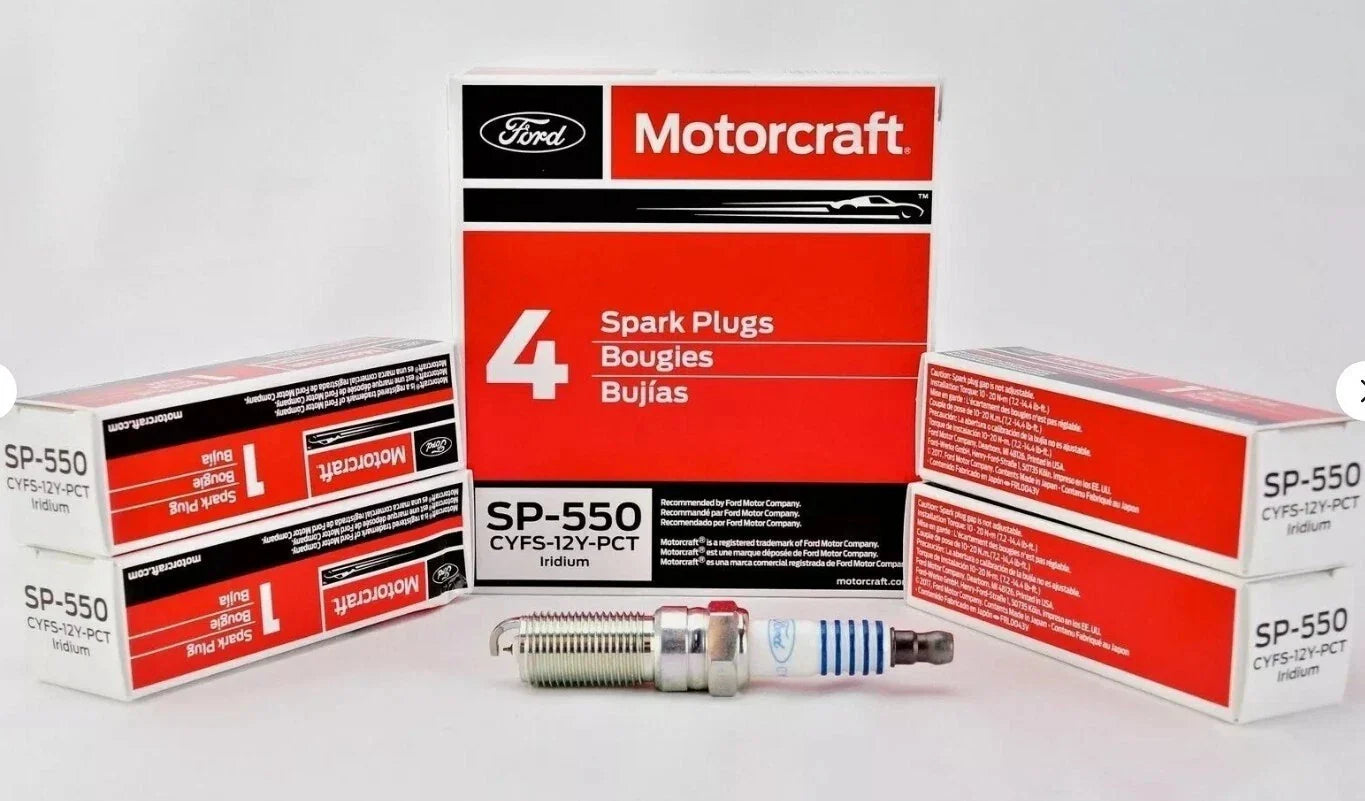

Motorcraft SP-550 spark plug — what it does and when it fails
The SP-550 (OEM: CYFS-12Y-PCT) is an updated iridium spark plug for Ford's EcoBoost 4-cylinder engines, replacing the discontinued SP-537. The iridium center electrode is designed to withstand the extreme conditions inside a turbocharged cylinder. When SP-550 spark plugs wear out:
Increased spark plug gap causes weak or inconsistent sparking
Ignition problems under turbo — the turbo makes spark plug wear signs much more pronounced
Reduced fuel efficiency
Difficulty starting in cold weather
Irregular idling and misfires
⚠️ Important: SP-550 is not compatible with the 2023 Ford Escape ST Line EcoBoost model. The correct spark plug for this model is SP-597. Always verify compatibility with your VIN number before ordering.
Why should you replace both at the same time?
This is the most important point in this guide. If your coils need replacing, your spark plugs are the same age — and vice versa. Here's why doing both together is the right decision:
Same mileage, same wear — if one fails, the other will soon fail too.
Installing a new coil in place of a worn spark plug does not fix the underlying ignition weakness.
Even a new spark plug with a weak coil will produce inconsistent sparks.
One job, one installation session, one free installation video — far more efficient than two separate repairs.
Provides complete, balanced ignition performance across all 4 EcoBoost cylinders.
Vehicle compatibility:
2013–2023 Ford Escape 2.0L EcoBoost
2013–2019 Ford Fusion 2.0L EcoBoost
2015–2023 Ford Edge 2.0L EcoBoost
2016–2023 Ford Explorer 2.3L EcoBoost
2015–2023 Ford Mustang EcoBoost 2.3L
2013–2018 Ford Focus ST 2.0L EcoBoost
2016–2018 Ford Focus RS 2.3L EcoBoost
How to replace DG-562 coils and SP-550 spark plugs together?
Disconnect the negative terminal of the battery before starting.
Remove the engine cover, if any.
Use compressed air to clean debris from each coil housing.
Remove the coil electrical connector, remove the retaining bolt, and pull the coil straight up. Use a 9/16" spark plug socket to remove the old SP-550 spark plug.
Install the new SP-550 spark plug by hand first, then tighten with 11 ft-lbs of torque.
Press the new DG-562 spark plug firmly until it clicks into place.
Reinstall the bolt and reconnect the electrical connector.
Repeat for all 4 cylinders.
Reconnect the battery, clear all fault codes, and take a test drive.
Total time: 45-60 minutes. The EcoBoost engine bay is compact yet accessible - the rotary socket extension makes working on the rear cylinders much easier.
🎥 Every order from SayParts includes a FREE step-by-step installation video covering how to replace both the coils and spark plugs. DG-562 coil replacement AND SP-550 spark plug replacement — one video covers complete maintenance for your EcoBoost engine.
