Motorcraft RT-1194 Thermostat Kit — Complete Guide for Ford F-150, Expedition, and Explorer 4.6L and 5.4L V8 Owners
If your 2004-2013 Ford F-150, Expedition, or Explorer is getting too hot, too cold, or displaying thermostat code P0128, the Motorcraft RT-1194 is the genuine OEM solution. This guide will explain what the thermostat does, how to tell if it's malfunctioning, and why using the correct OEM replacement part for your Ford 4.6L or 5.4L V8 is important.
What does a thermostat do?
The engine coolant thermostat is a temperature-controlled valve that regulates the flow of coolant between your engine and radiator. When the engine is cold, the thermostat stays closed, allowing the engine to quickly reach operating temperature. When the engine reaches the correct operating temperature, the thermostat opens, circulating coolant through the radiator and preventing overheating.
When the thermostat malfunctions – stuck open or closed – your engine cannot maintain the correct operating temperature. This leads to overheating, increased fuel consumption, heater problems, and in severe cases, engine damage.

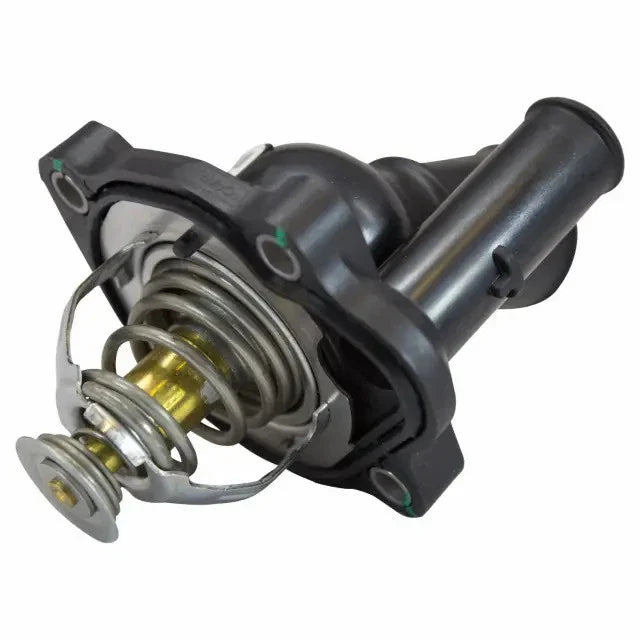

What is Motorcraft RT-1194?
The RT-1194 is an updated Original Motorcraft engine coolant thermostat kit for Ford's 4.6L and 5.4L V8 engines. It replaces the RT-1174, RT-1181, and RT-1189 – if your vehicle originally used any of these part numbers, the RT-1194 is the correct updated replacement. It is designed to Ford factory specifications and is backed by Motorcraft's 2-year unlimited mileage warranty.
Symptoms of a faulty thermostat:
Engine overheating or temperature gauge displaying higher than normal
Engine taking too long to reach operating temperature - especially in cold weather
Engine malfunction light displaying code P0128 (thermostat stuck - coolant temperature below threshold)
Heater blowing cold or lukewarm air
Poor fuel economy - engine running too cold consumes more fuel
Irregular temperature gauge fluctuation during driving
P0128 is one of the most common codes in Ford 4.6L and 5.4L V8 engines, and in most cases, replacing the thermostat with the correct OEM Motorcraft unit will immediately resolve the issue.
Why original Motorcraft RT-1194?
Designed to Ford factory specifications — guaranteed to open at the correct temperature
Stainless steel bridge and spring frame for strength and robustness
Stainless steel pistons with flexible elastomeric bellows and tapered tips
Aerodynamic venturi nozzle for maximum coolant flow
Passed stroke, heat and pressure tests for 10 years/150,000 miles equivalent
Motorcraft 2-year/unlimited mileage warranty — valid at any Ford or Lincoln dealership
Aftermarket thermostats often open at temperatures slightly different from OEM specification — this can cause P0128 codes to return even after replacement. The original Motorcraft RT-1194 is calibrated to Ford's exact specification and ensures the code clears and remains clear.
Vehicle compatibility
2004–2008 Ford F-150 4.6L and 5.4L V8
2004–2006 Ford F-150 Heritage 4.6L V8
2003–2013 Ford Expedition 4.6L and 5.4L V8
2004–2010 Ford Explorer 4.6L V8
2004–2008 Ford E-150/E-250/E-350 4.6L and 5.4L V8
2004–2008 Lincoln Navigator 5.4L V8
2004–2008 Lincoln Mark LT 5.4L V8
Replacements: RT-1174, RT-1181, RT-1189, 4L5Z-8575-A, 4L5Z-8575-AA, 4L5Z-8575-AD, 4L5Z-8575-B. Please verify compatibility with your VIN number before ordering.
Replacing the RT-1194 thermostat:
Wait for the engine to cool completely — never open the cooling system on a hot engine.
Drain the coolant from the radiator drain tap into a clean container and reuse it.
Locate the thermostat housing on the engine — follow the upper radiator hose to reach the engine.
Unscrew the housing bolts and lift the housing off the thermostat.
Remove the old thermostat and gasket — thoroughly clean the contact surfaces.
Install the new RT-1194 thermostat in the correct direction (swing valve facing upwards).
Install a new gasket and reinstall the housing.
Refill the cooling system and purge any air pockets.
Start the engine, check for leaks, and verify that the temperature gauge has reached its normal operating range.
Note: Accessing the thermostat housing can be difficult on 5.4L V8 engines. A flexible extension and swivel socket makes the job much easier. 🎥 Every order from SayParts includes a FREE step-by-step installation video covering the RT-1194 thermostat replacement on your Ford 4.6L or 5.4L V8.
Why buy from SayParts?
Genuine Motorcraft RT-1194, with 2-year/unlimited mileage Ford warranty
Free installation video with every order
Free worldwide shipping
VIN verification available — contact us before ordering if unsure of compatibility
Don't let a faulty thermostat damage your Ford engine. The Motorcraft RT-1194 is the solution for P0128 codes and cooling system issues on your 4.6L or 5.4L V8.
